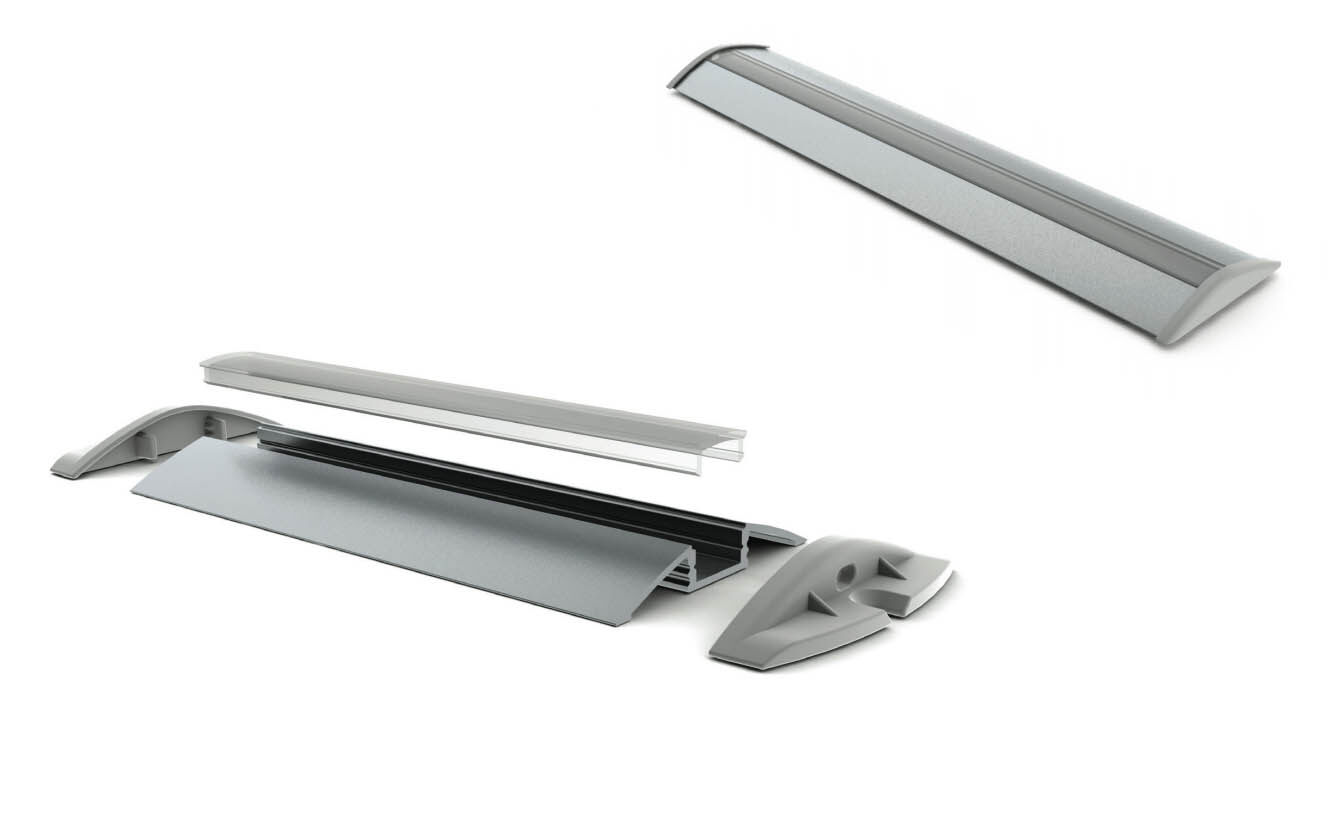

• High quality diffuser now placed from the front on click

• Polycarbonate UV resistant, damage resistant (walk over safe)

• Base of the profile is made in anodized aluminum

• Profile is available in RAL9010 and standard anodized color

• Profile is available in lengths 1m, 2m or 3m (large quantity order)

• ALU-FLAT is suitable for low power and high power LEDs

• Simplicity in design with high quality finish

• Profile and diffuser is “walk over safe”

• Protection grade IP20

APPLICATIONS:

• Under kitchen cabinets LED lighting

• Stores shelves LED lighting

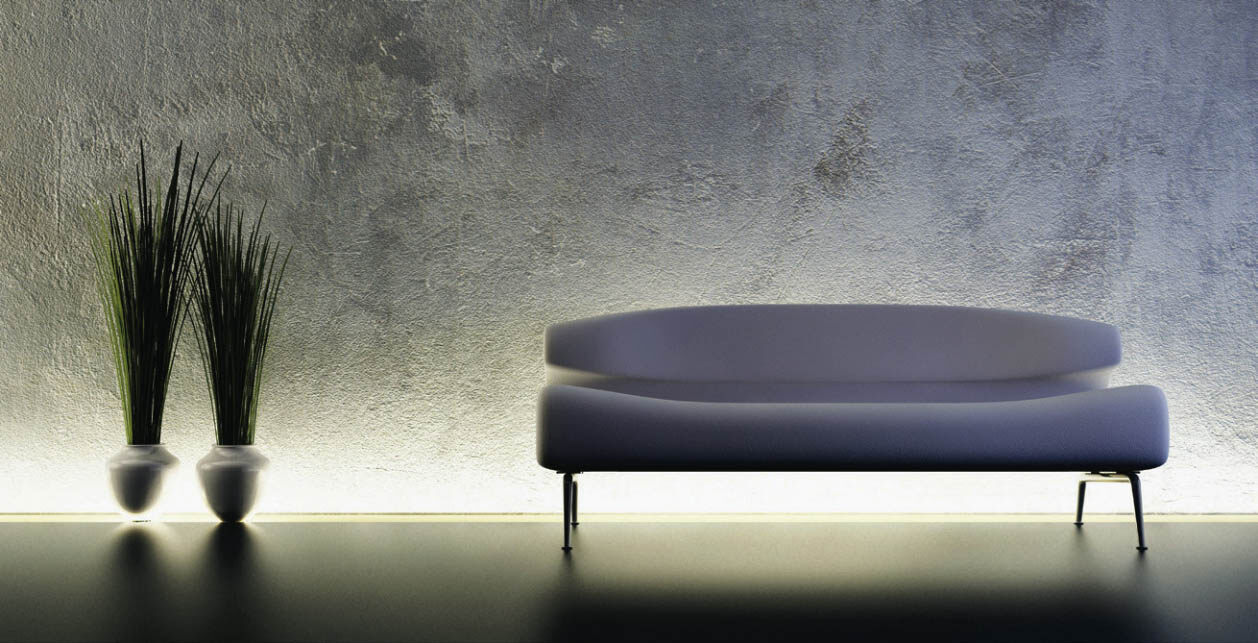

• Floor LED lighting

• Storage shelves LED lighting

• Exhibition boot LED lighting

• interior LED lighting

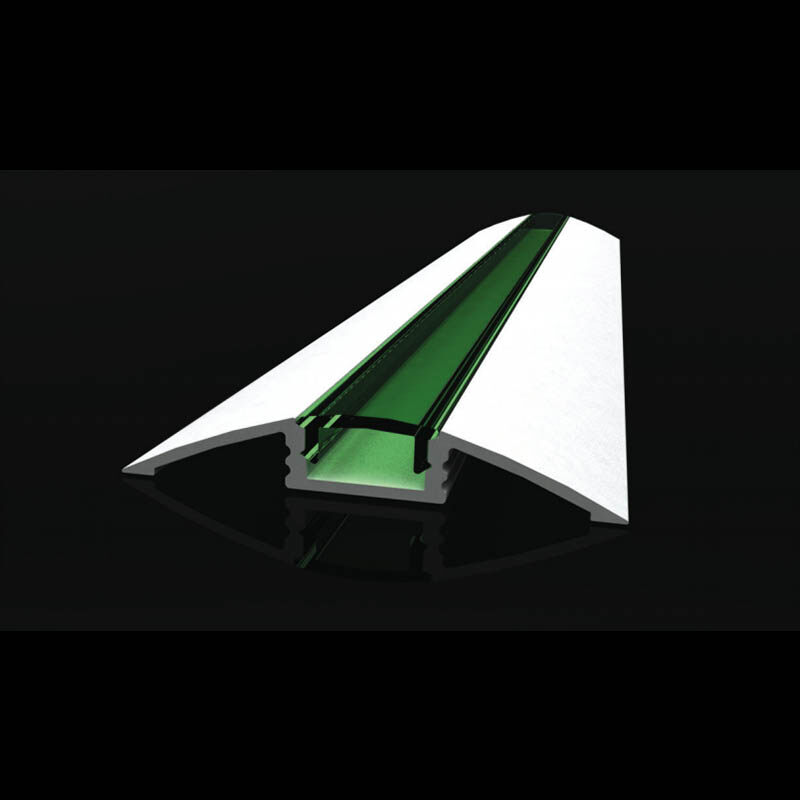

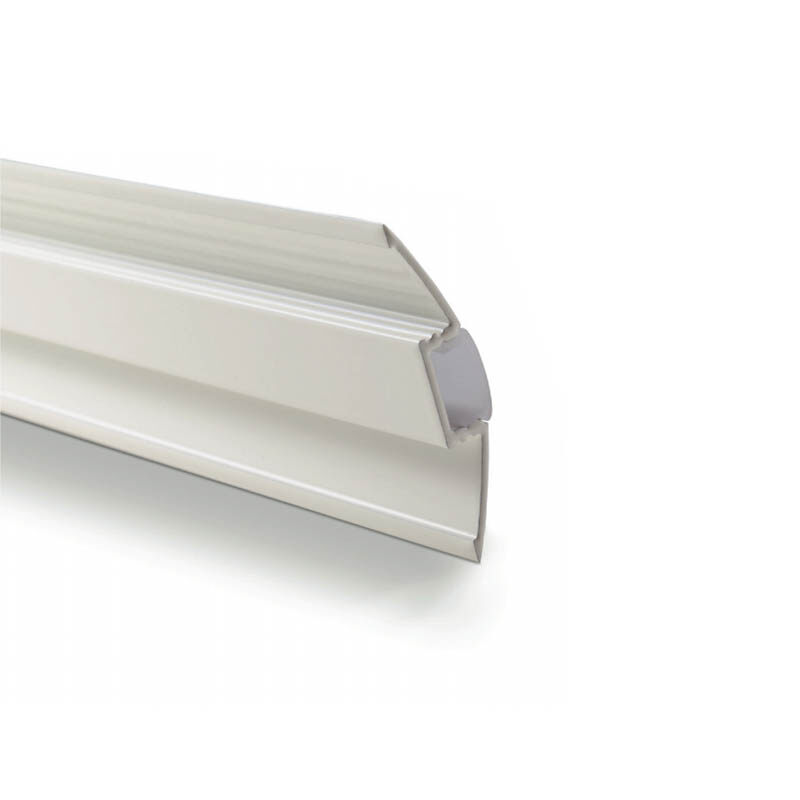

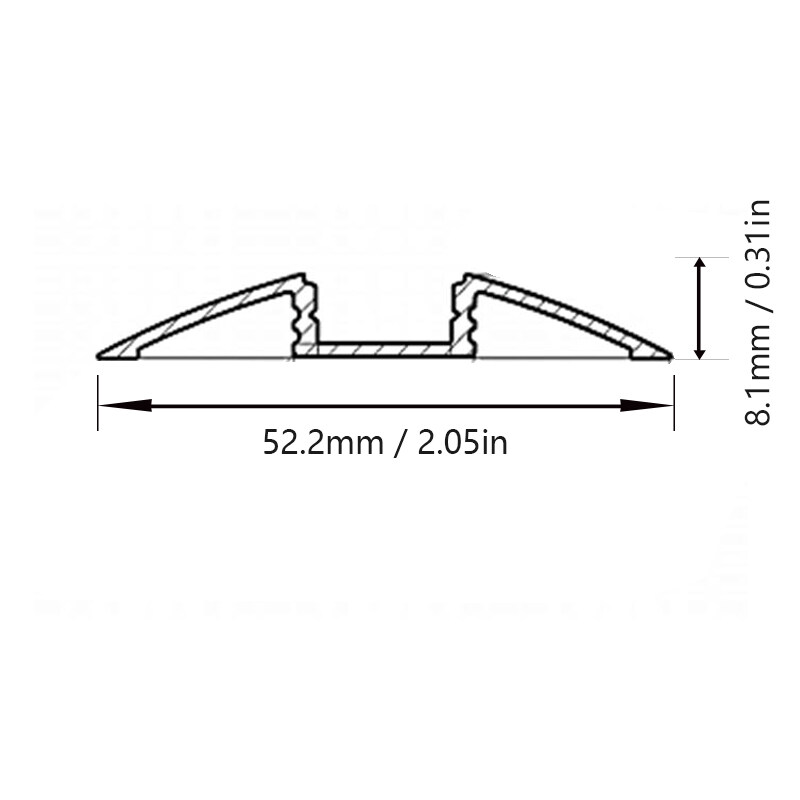

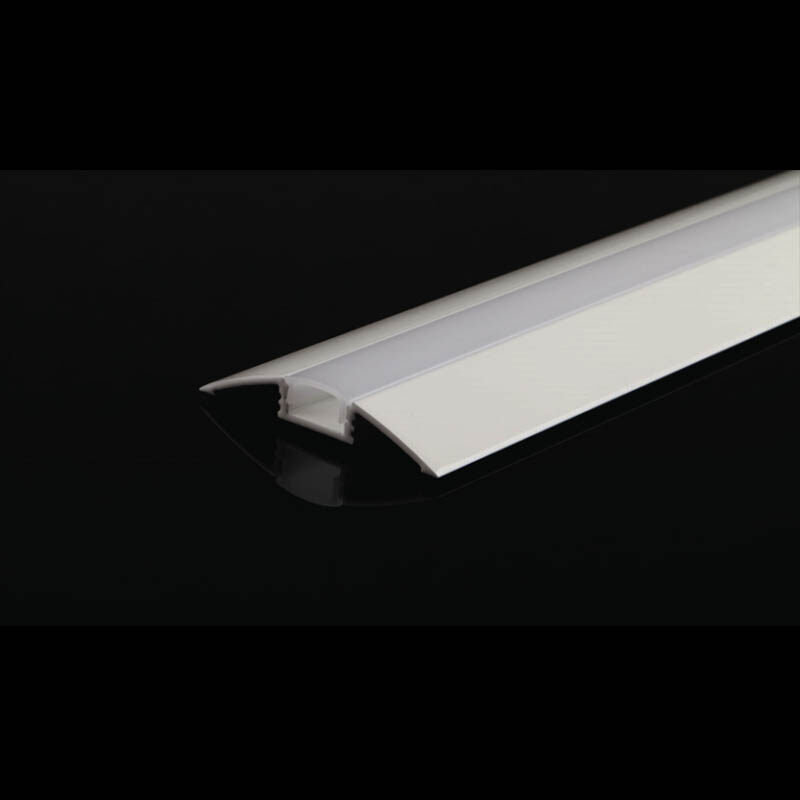

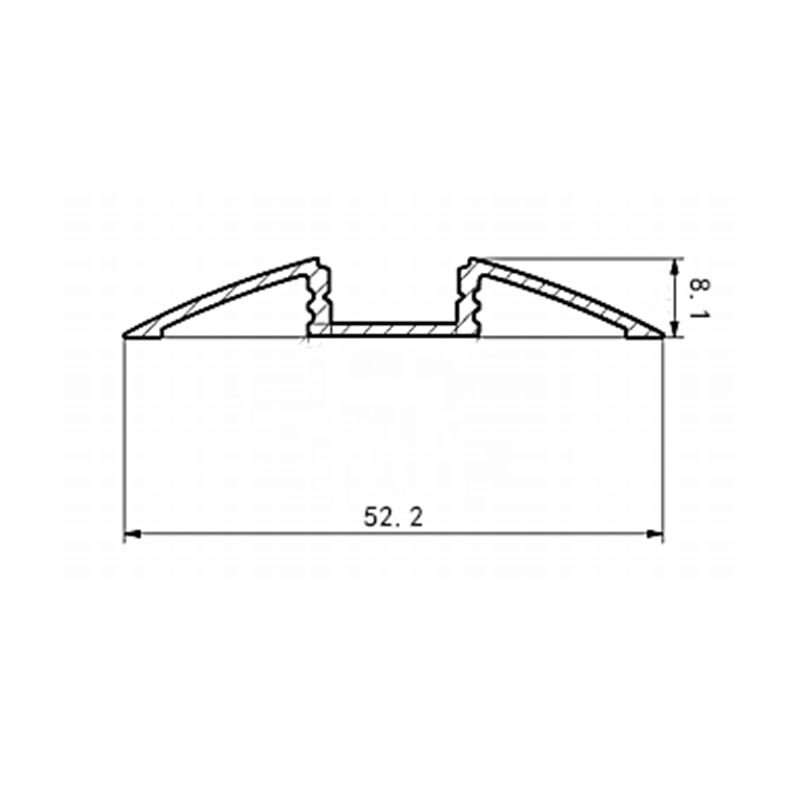

      Aluminum LED profile only 7,6mm. The aluminum profile walls thickness and the damage resistant diffuser

allow you to walk over this profile. It has been positively tested and is “walk over” safe. The profile is available

in anodized version of aluminum and RAL9010. Profile comes with polycarbonate UV resistant, damage resistant

diffuser, which now is placed, into the profile from front for click.

     Profile provides mechanical and thermal protection (heat sink) to the LEDs and is suitable for high power LED

lighting. The profile has many different applications it can works as under store shelves independent LED lamp or

can be installed on the floor to cover the connection and provide additional protection for the computer cables.
