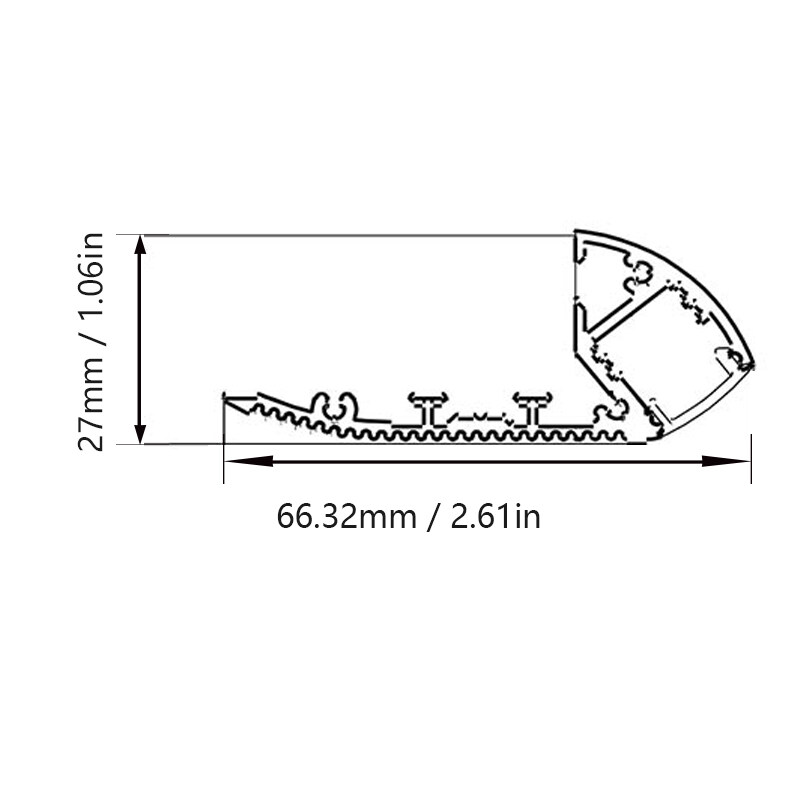

LED Profile Light TWD-17

FUTURES:

• Hard aluminum alloy and special anodizing thickness

• High standard of anodizing aluminum

• High Quality UV resistant polycarbonate snap in diffuser

• LEDs DOTS FREE design (frosted diffuser)

• Stair installed LED profile with smooth line of light

• Suitable for standard or high power LED stripes up to 30W/m

• Available on stock in anodized silver color

• Possible isolation of the diffuser and end cap against water

with transparent silicone

• Possible length and color customizing at MOQ

• Available on stock with dedicated end caps

• Indoor use only, IP20

APPLICATIONS:

• Stair LED lighting illumination

• Hotels, cinemas, restaurants, night clubs, stair LED lighting

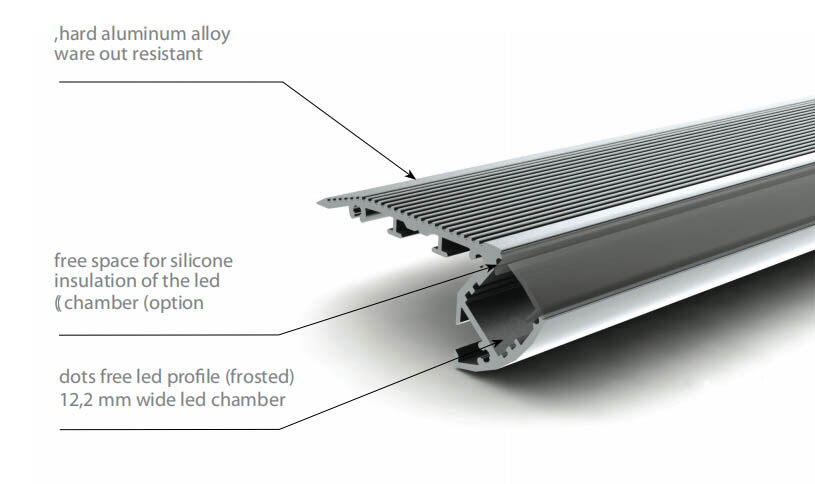

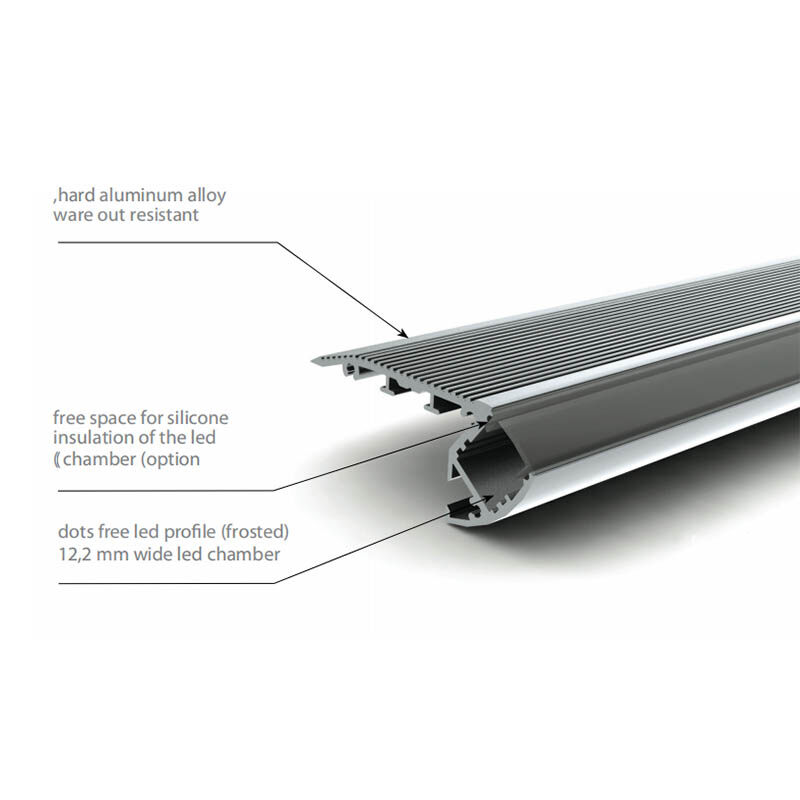

Stair installed LED profile is designed for steps illumination in darker rooms. It has been

made from hard anodized aluminum alloy for walk over safety and time ware out resistant.

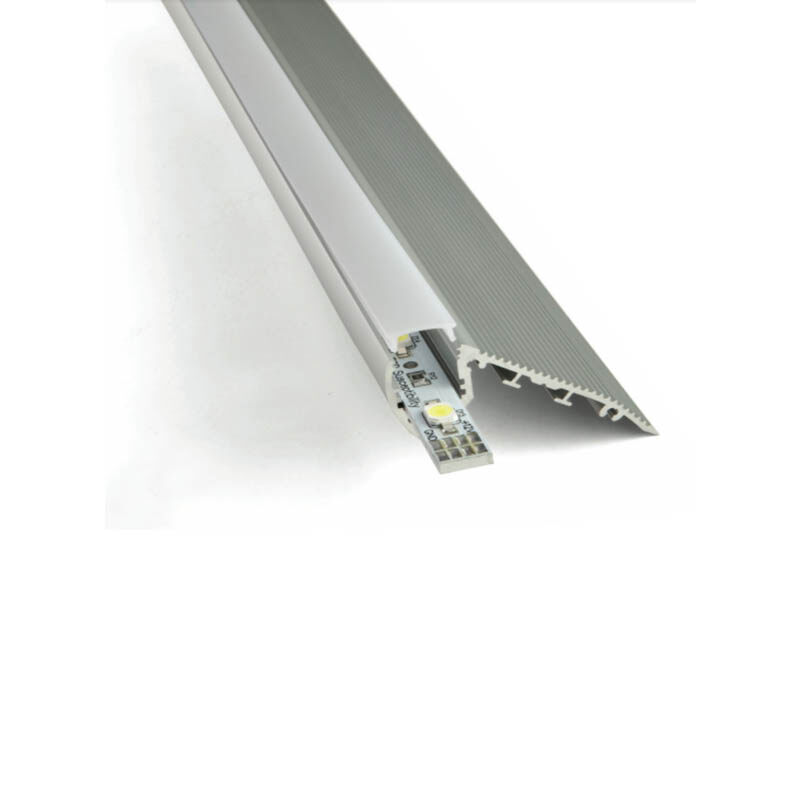

The profile is coming with choice of two high quality UV resistant, damage resistant snap-in

diffusers in frosted and transparent. The frosted diffuser is “LEDs DOTS FREE” and is giving

nice and soft smooth line of light on the whole diffuser surface. The profile LED chamber can

accommodate standard or high power led stripes up to 12mm of the wideness.

The profile can be installed inside or outside if connected with IP67 LEDs stripes and profile

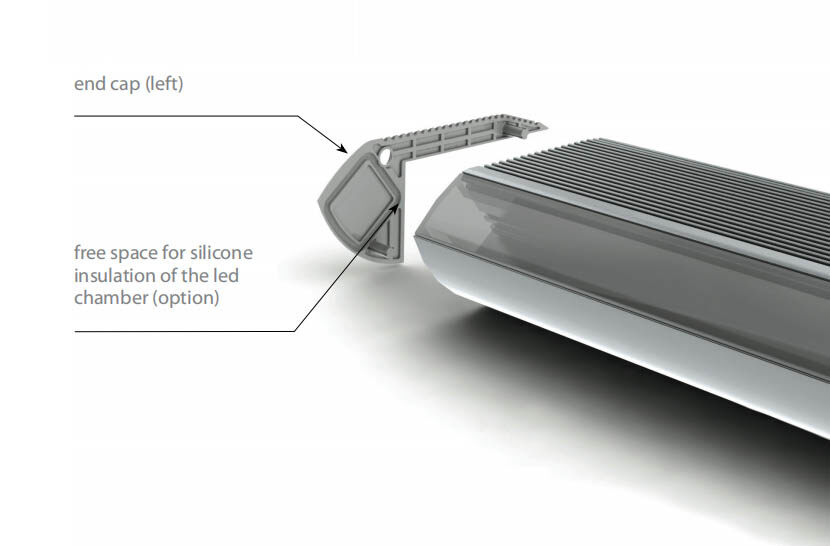

LED chamber will be silicone insulated against water. The available accessories such as end

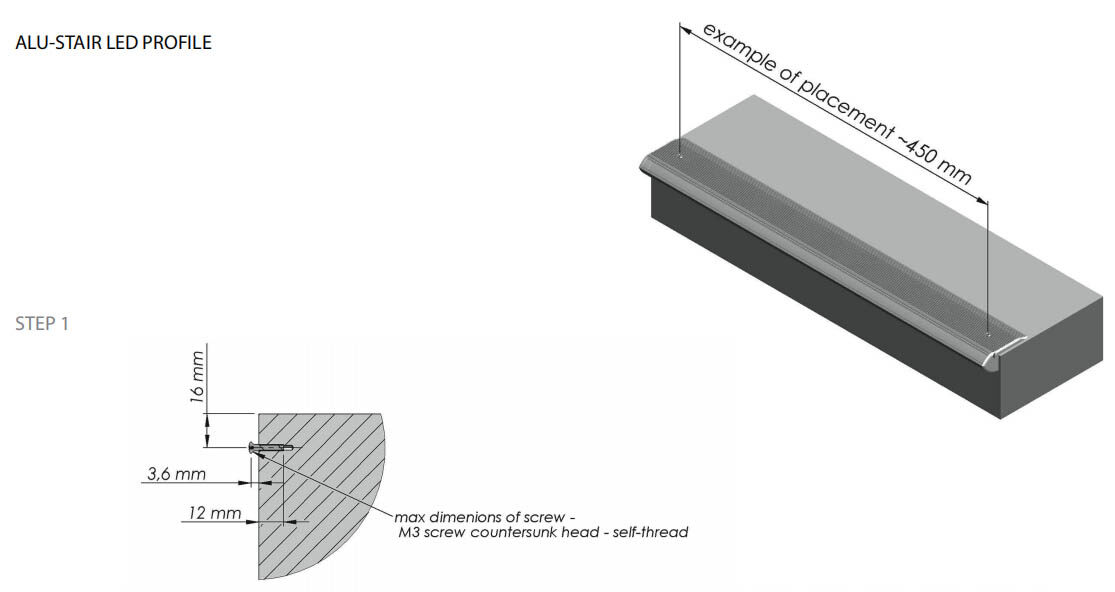

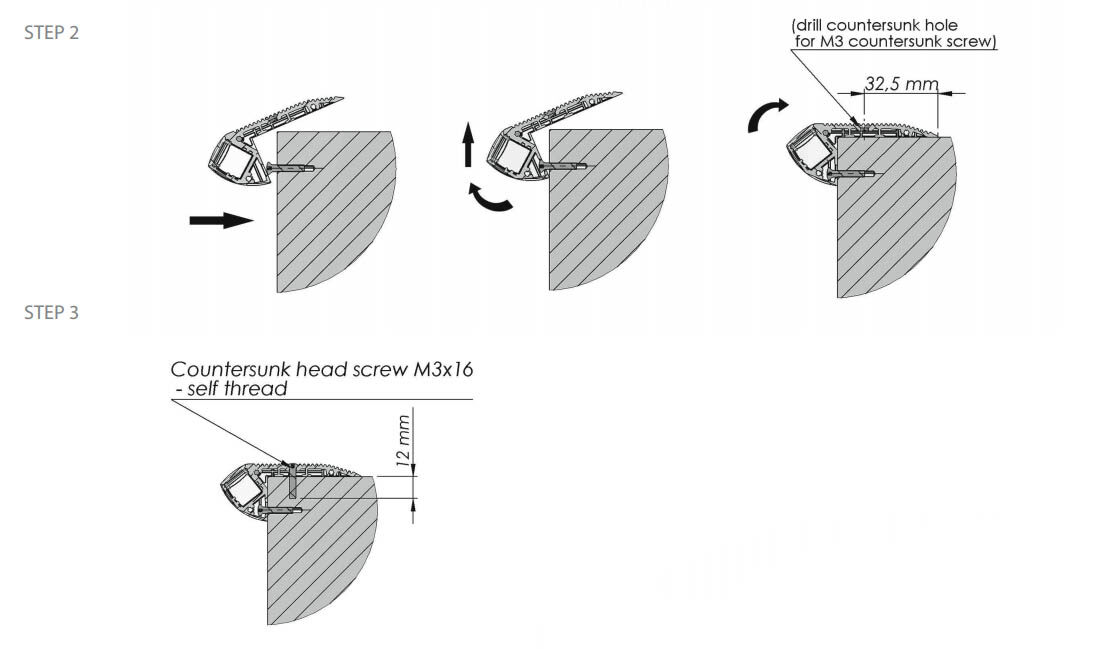

caps helps professionally finish the profile. Installation steps are fully explained in the PDF catalogue.
