LED Profile Light-2310 trimless

High standard of anodizing aluminum surface

• High Quality UV resistant polycarbonate snap in diffuser

• Reduced light lost design

• Small dimensions only 8mm high

• Extra space inside the profile (20mm) for IP67 led ribbons,

RGB or double row LED stripe

• Available on stock in anodized silver color

• Possible length and color customizing at MOQ

• Available with dedicated accessories such as end caps and

mounting brackets

• Indoor use only, IP20

APPLICATIONS:

• Led lamps

• Retail store shelf LED lighting

• Kitchen cabinets LED lighting

• Exhibitions, hotels, restaurants LED lighting

• Interior design linear LED lighting

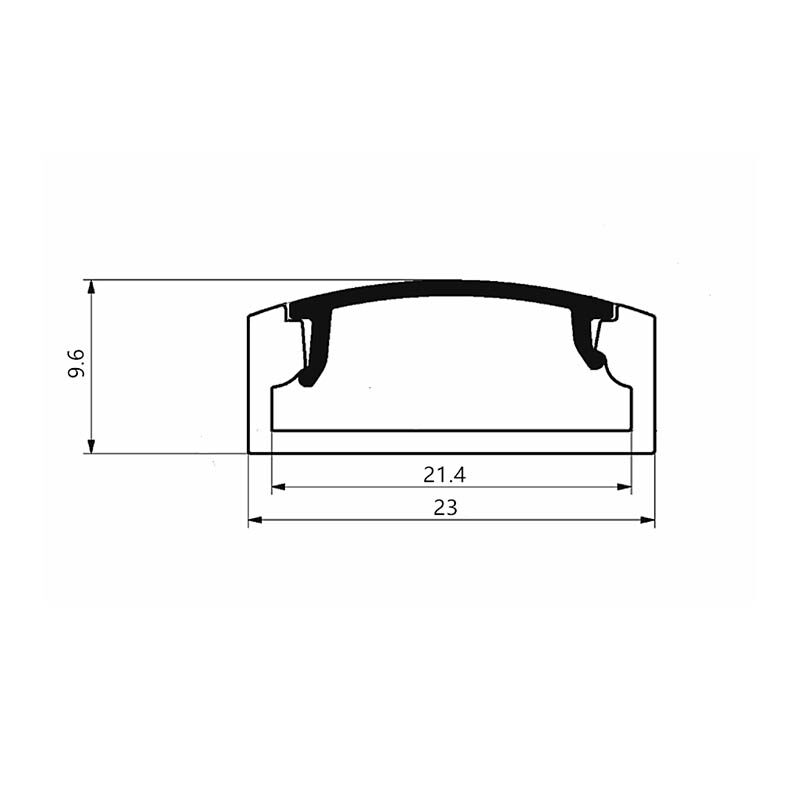

Slim Line Wide 8mm, surface mount profile has been design and made for wider then standard

(10/12mm) LED stripes.

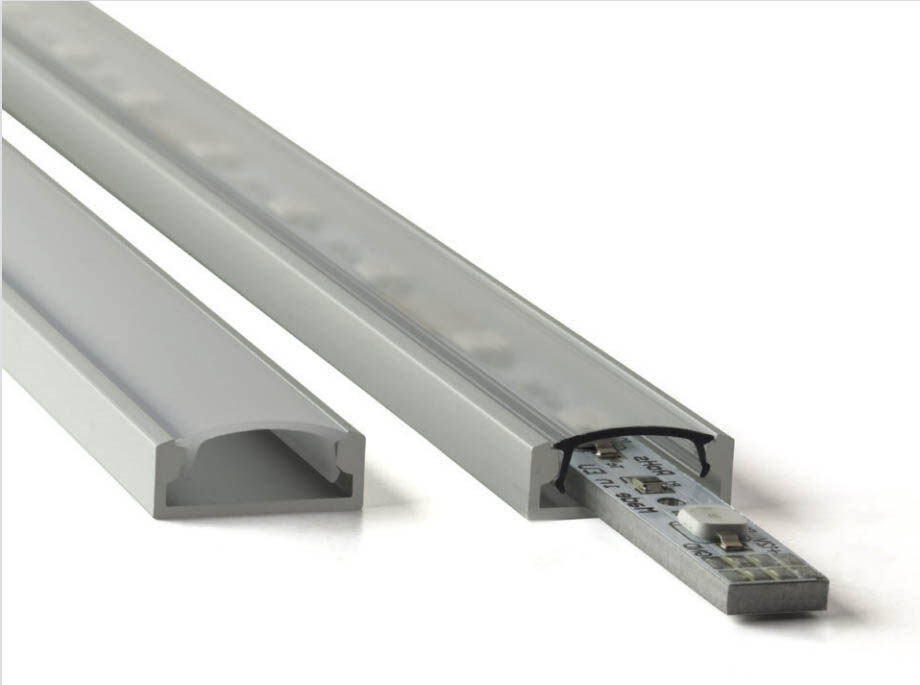

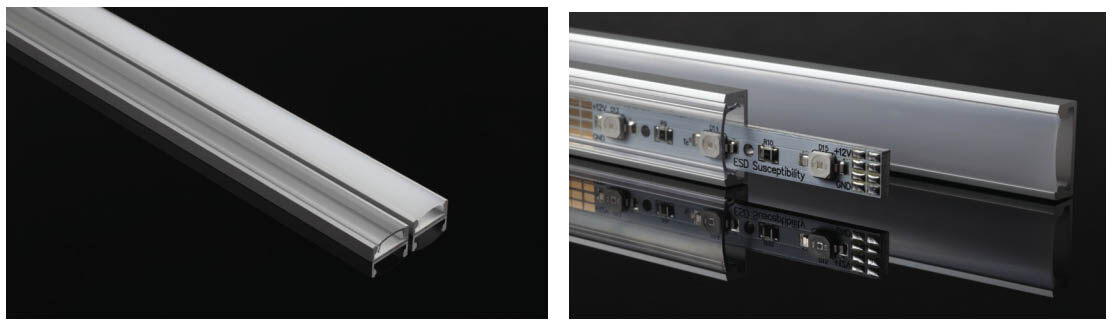

The wideness inside the profile is 20mm and can accommodate any type of the led stripes available

on the market such as double row LED stripes, RGB strips, digital RGB ribbons or waterproof ribbons

in single color or RGB version which do not fit into standard profile. The wide diffuser is not cutting

down the angle of the LEDs and presents itself as the quality product. The profile it is available with

two snap-in UV resistant diffusers, frosted and transparent. The larger amount of aluminum it is

performing as the heat sink to the LEDs and also appears as the nice looking housing.

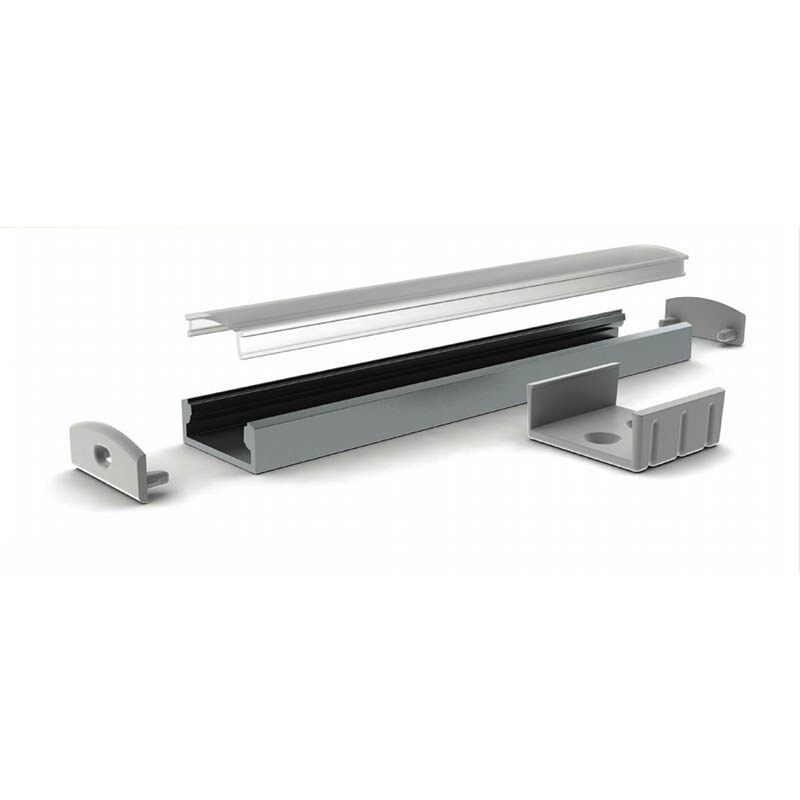

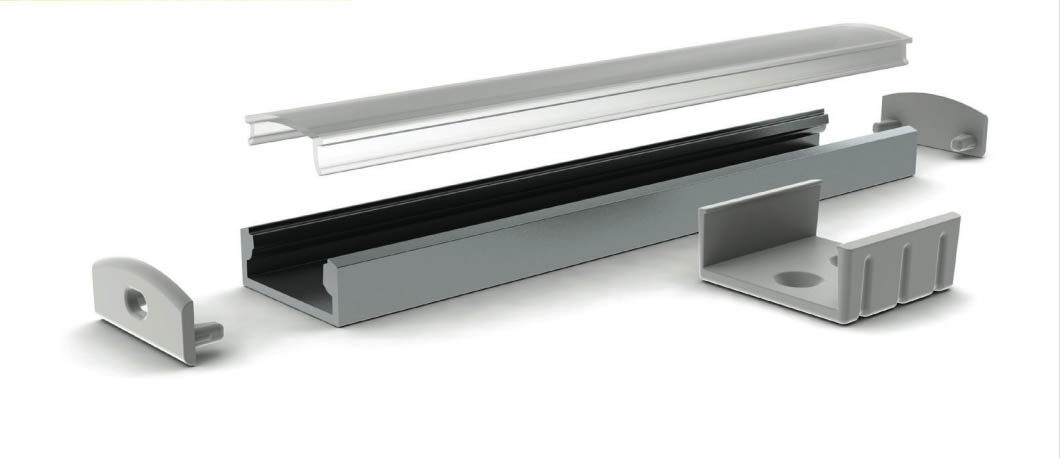

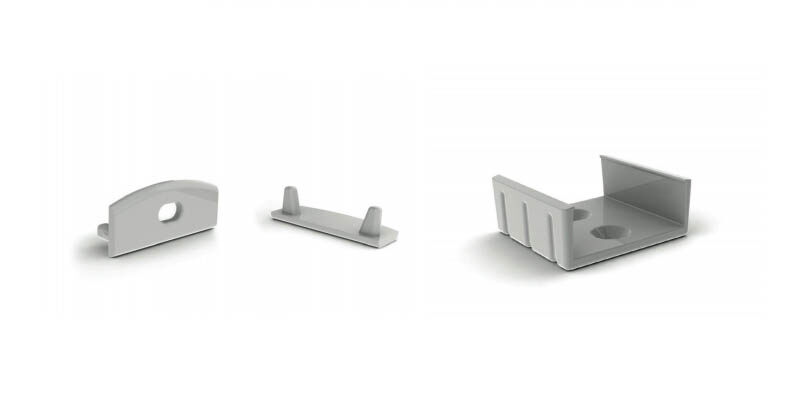

The installation can be easily and professionally finish with available accessories such as end caps

and mounting brackets.
