LED Profile Light-2310

FUTURES:

• High standard of anodizing aluminum surface

• High Quality UV resistant polycarbonate snap in diffuser

• Reduced light lost design

• Small dimensions only 8mm high

• Extra space inside the profile (20mm) for IP67 led ribbons,

RGB or double row LED stripe

• Available on stock in anodized silver color

• Suitable for low power LED stripes

• Possible length and color customizing at MOQ

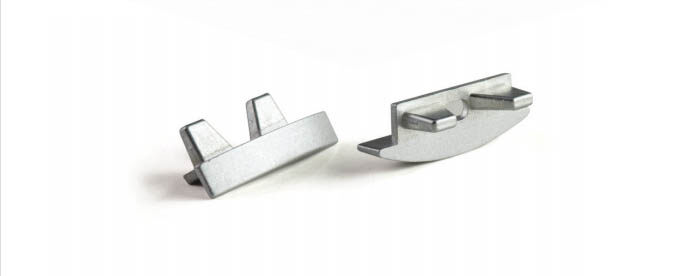

• Available with dedicated finish end caps

• Indoor use only, IP20

APPLICATIONS:

• Build-in type LED profile

• Retail store build-in shelf LED lighting

• Kitchen cabinets build-in LED lighting

• LED profile for floor, wall, ceiling build-in LED lighting

• Exhibition stands, hotels, restaurants LED lighting

• Interior design LED lighting

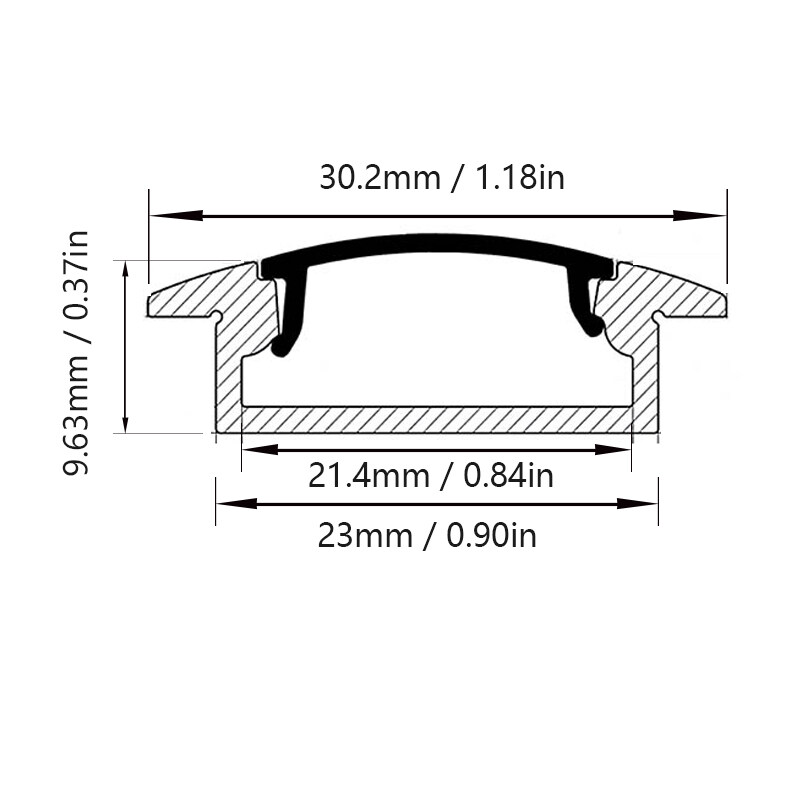

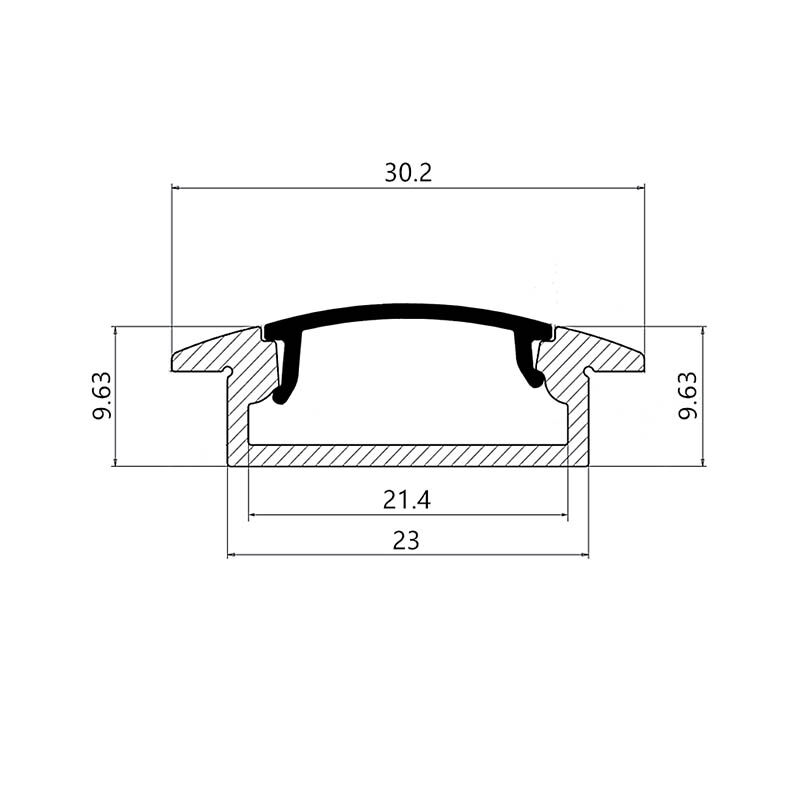

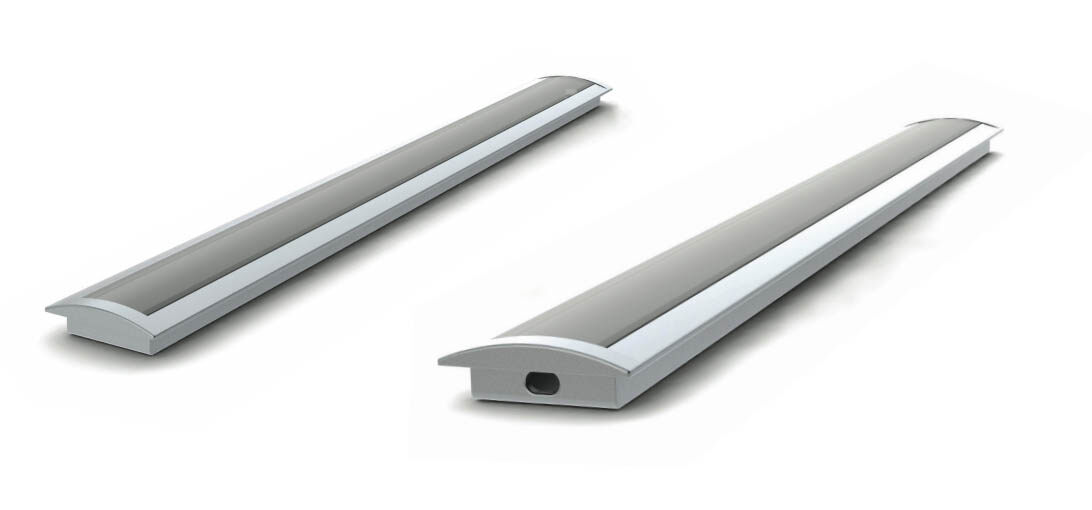

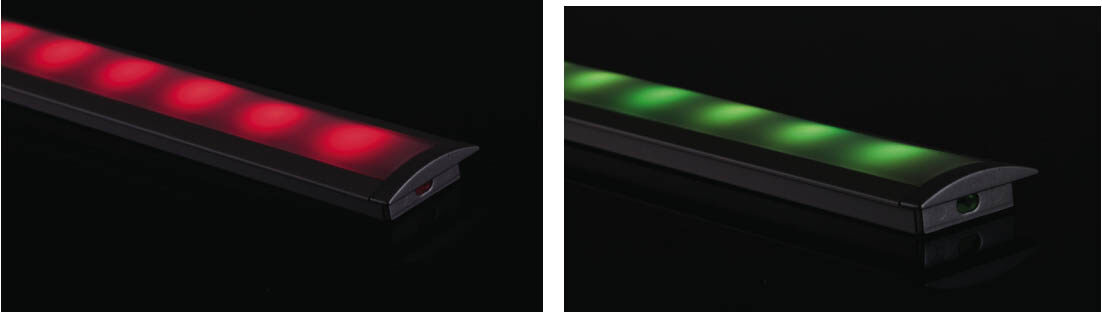

Recessed Slim Line Wide 8mm is the version of the LED profile for build-in into

material. The profile can be recess into any kind of surface and the expending to

the sides the profile “wings” covers the mill row completely. This type of profile

is often use for build-in underneath kitchen cabinets led lighting, retail store shelf

lighting. The profile itself is generally dedicated for wider then standard (8mm/10/

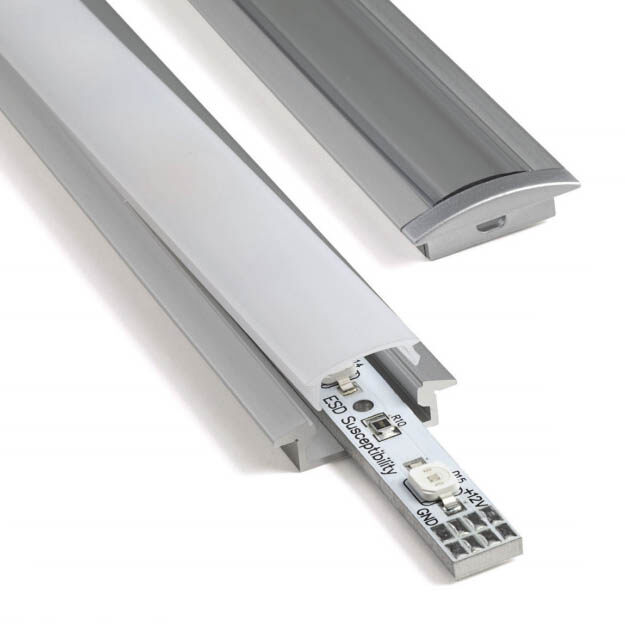

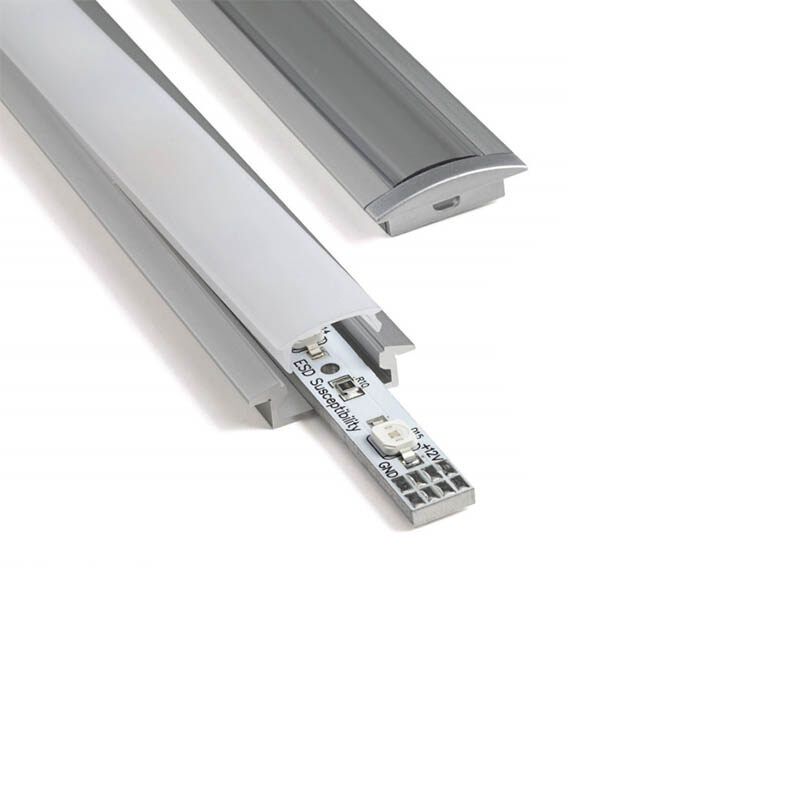

12mm)LED stripes. The wideness inside the profile is 20mm and can accommodate

any type of the led stripes available on the market such as double row LED stripes,

RGB strips, digital RGB ribbons or waterproof ribbons in single color or RGB version

which do not fit into standard profile. The wide diffuser is not cutting down the angle

of the LEDs and presents itself as the quality product.

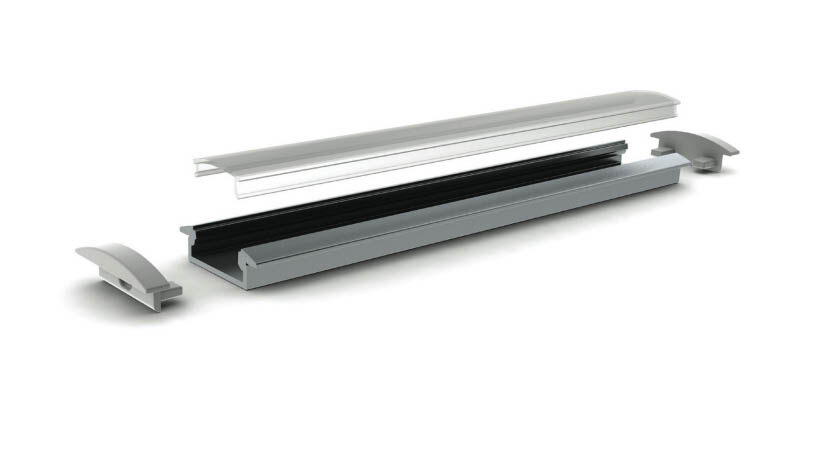

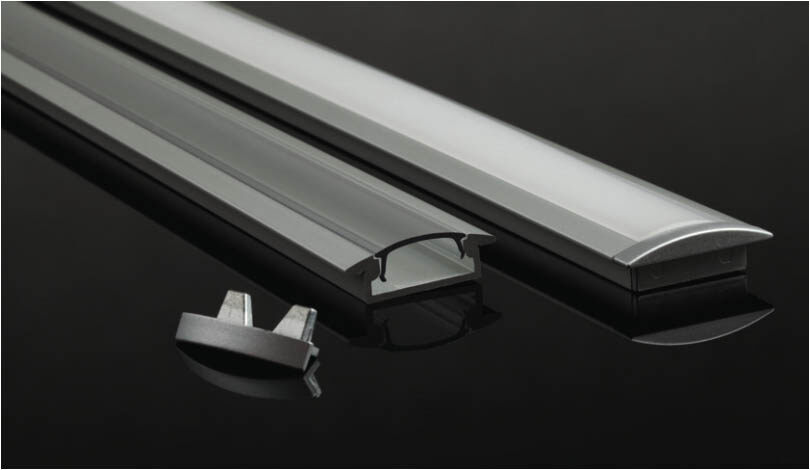

The profile it is available with two snap-in UV resistant diffusers, frosted and trans-

parent. The larger amount of aluminum it is performing as the heat sink to the LEDs

and also appears as the nice looking housing. The installation can be easily and pro-

fessionally finish with available accessories such as aluminum end caps.
