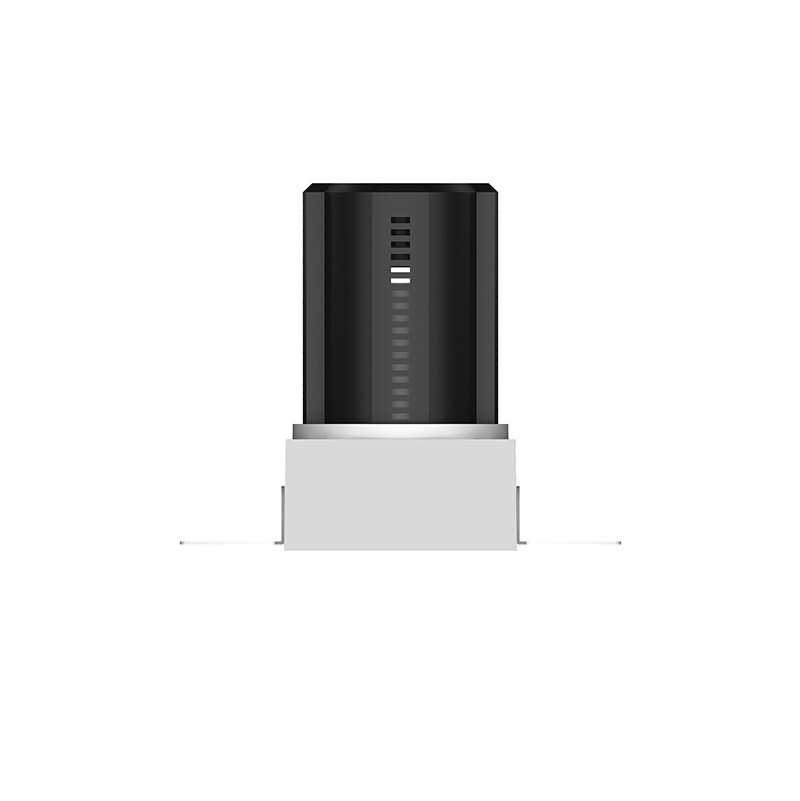

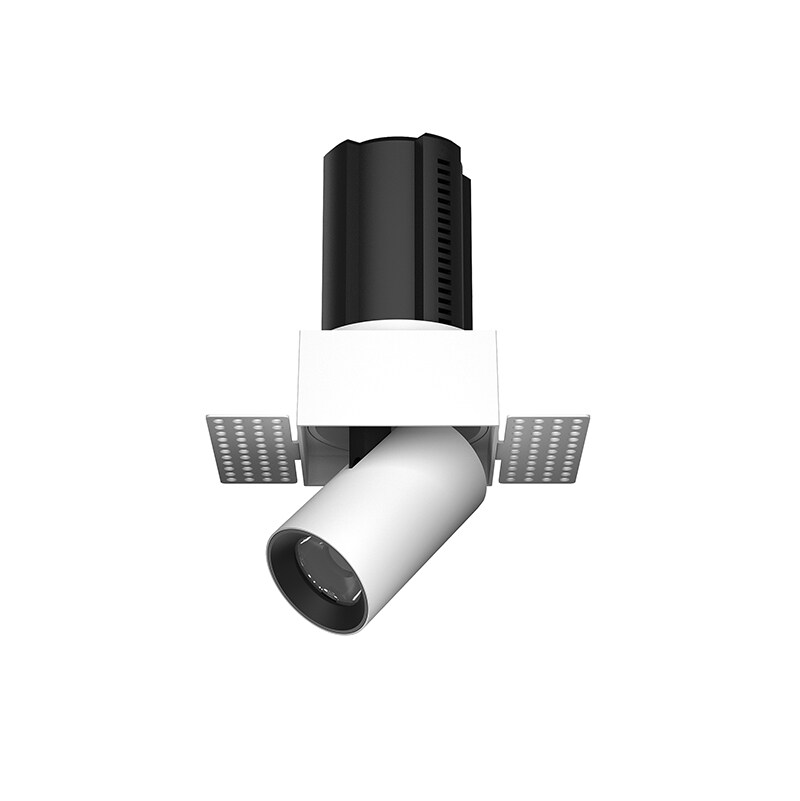

VENTIX extendable square trimless spotlight V324-1

COB Chip
Can match many kinds of brand,such as CREE/CITIZEN/BRIDGELUX etc.

0-90° Vertically tiltable

0-355° horizontally rotatable

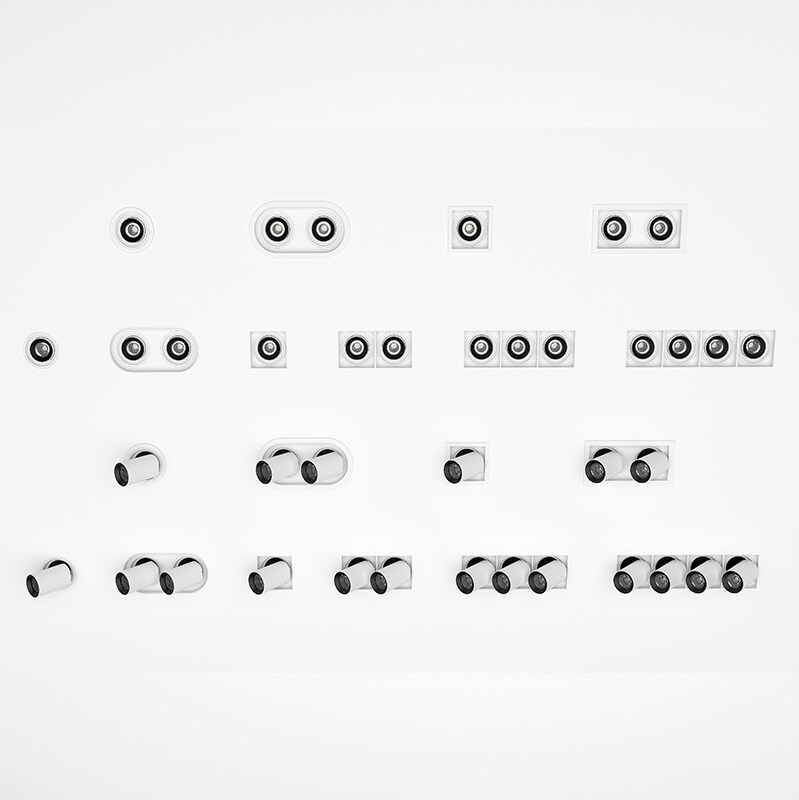

A series of modular design multiple light.
One kinds of LED module can match with 4 kinds of mounting frame to become 1 head,2heads,3heads and 4heads multiple light.tool-feee to change the LED module.

Easy to replace reflector,optic,accessory


Over 30-Year Factory Producing Experience

1. Deep reflector cup, providing anti-glare performance.

2. Honeycomb Mesh, effectively prevent excess astigmatism.

3.Die-casting aluminum radiator with higher heat dissipation efficiency.



COB Chip
Can match many kinds of brand,such as CREE/CITIZEN/BRIDGELUX etc.

0-90° Vertically tiltable

0-355° horizontally rotatable

A series of modular design multiple light.
One kinds of LED module can match with 4 kinds of mounting frame to become 1 head,2heads,3heads and 4heads multiple light.tool-feee to change the LED module.

Easy to replace reflector,optic,accessory





Our quality control (4 times 100% checking and 24 hours aging)

1.Raw material 100% check before production.

2.order must have a first sample and full check before manufacturing process.

3.100% check before aging.

4.24 hours aging with 500 times on off testing.

5.100% final inspection before packing.

FAQ

1.Are you a factory or trading company?
We are a 30-years factory, we provide ODM& OEM services.
2.What is your main product line is made?
We mainly produce led lights and lighting fixtures.Focus on commercial lighting.(led downlight, led track light, linear light etc.)
3. You have the ability to do independent research and development?
Our engineering department has 10 staffs, we have the R&D ability to make our products competitive. We also collect regularly customer feedback, products improvement and new product requirement. We also hold monthly new product launches.
4. What certificates you have?
Our products have passed CE, RoHS, ISO and etc
5.What is your production capacity?
150,000-200,000pcs per month
6.What is the warranty?
Most of our products are 2-5 years warranty.
7.How about the delivery time ?
Delivery time for sample:3-5days after get your samples request and samples charge.
Delivery time for mass production: 25-40days after order confirmed after receiving buyer's deposit
8.How do you handle defects?
1/1 replacement of defects within the warranty period.
9.How about the Package & Product design?
Based on factory original box,original design on product with neutral laser and label,original package for export carton.If need your mark on products or packing, please tell us, we can do it for you.

PRODUCT DATA

Model Power Light Output Light Efficiency CRI Beam angle Size Cutout
W323-2B double 2*7W ≥1190 lm ≥85 lm/W ≥90 15°/24°/38°/60° L117.5*W63.5*H87.5 L10.5*W55
W324-2B double 2*12W ≥2040 lm ≥85 lm/W ≥90 8°/15°/24°/38°/60° L158*W84.5*H111.8 L150*W75
W325-2B double 2*20W ≥3400 lm ≥85 lm/W ≥90 15°/24°/38°/60° L198*W104.5*H137.5 L190*W95
W323-3B triple 3*7W ≥1785 lm ≥85 lm/W ≥90 15°/24°/38°/60° L171*W63.5*H87.5 L163*W55
W324-3B triple 3*12W ≥3060 lm ≥85 lm/W ≥90 8°/15°/24°/38°/60° L231.5*W84.5*H111.8 L222*W75
W325-3B triple 3*20W ≥5100 lm ≥85 lm/W ≥90 15°/24°/38°/60° L293.5*W104.5*H137.5 L284*W95
W323-4B quadruple 4*7W ≥2380 lm ≥85 lm/W ≥90 15°/24°/38°/60° L117.5*W117.5*H87.5 108.5*W108.5
W324-4B quadruple 4*12W ≥4080 lm ≥85 lm/W ≥90 8°/15°/24°/38°/60° L158*W158*H111.8 L150*W150
W325-4B quadruple 4*20W ≥6800 lm ≥85 lm/W ≥90 15°/24°/38°/60° L198*W198*H137.5 L190*W190
