Linear Luminaire Module – Sharp – 1.5M – 48/70W

Material: Strong 6063 aluminum
Beam Angel: 30º PMMA lens
Lumen efficiency: 160Lm/W
Installation: Continous Row without Gap
Certificates: TUV CE, Rohs, SAA, C-Tick
Quality Warranty: 7 Years

Description

Linear Luminaire Module – Sharp – 1.5M – 48/70W

Linear luminaire modules with 30º angle PMMA optic lenses are designed for narrow spaces like Supermarkets, Warehouses, logistic centers or Workshops which placed lots of high shelves for goods. The maximum ceiling height could be 15 meters.

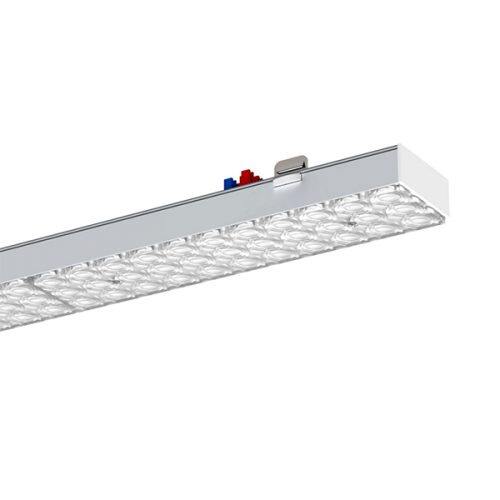

Linear Luminaire Module HD image

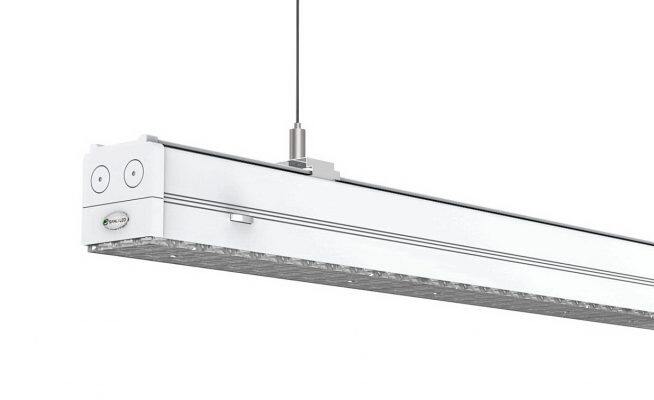

Below is the photo for the whole trunk system: (Trunking rail & Linear luminaire module).

Continuous Row LED Linear Trunking System HD image

Main Features:

With beaded 30º PMMA optic lens
5/7/11 cores choice
Lumen efficiency: 160Lm/W
Protection rating: IP40
Temperature range: -30°C – +40°C
Service life: up to 50,000 h(L80)
Top brands components: Osram, Philips drivers , Samsung , Epistar 2835 chips
Housing of strong 6063 aluminium, with black or white finish color for selection

Luminaire Dimension:

Length	L(mm)	W(mm)	H(mm)	Wt(kg)	Qty/CTN
1.5m	1437	64.5	31.5	2.5	6

Luminaire Parameter:

Length	Power	LEDs	Lumen	CRI	UGR	Optional
1.5m	48W	165pcs	7680lm	>80/>90	<19	Dimming/Emergency/Motion Sensor
1.5m	70W	165pcs	11200lm	>80/>90	<19	Dimming/Emergency/Motion Sensor
