Features:
-60 seconds quick installation without any tools
-Low installation cost - simply splicing to complete without the additional materials for installationAt the same time, the labor costs of wiring and fixture installation are significantly reduced
-A three-phase circuit is preset in the track and the lamp can be individually controlled as required
-Dimming mode: 0-l0V and DALl
-Emergency Mode: Emergency Battery/UPS System
-Sensor mode: microwave sensor and daylight sensor
-X L. and T' standard module node connectors
-Mounting options: Surface mounted chains or ropes
-Wide range of optics from 30° to 120° distribution, and double symmetrical distribution

Trunking Rail:

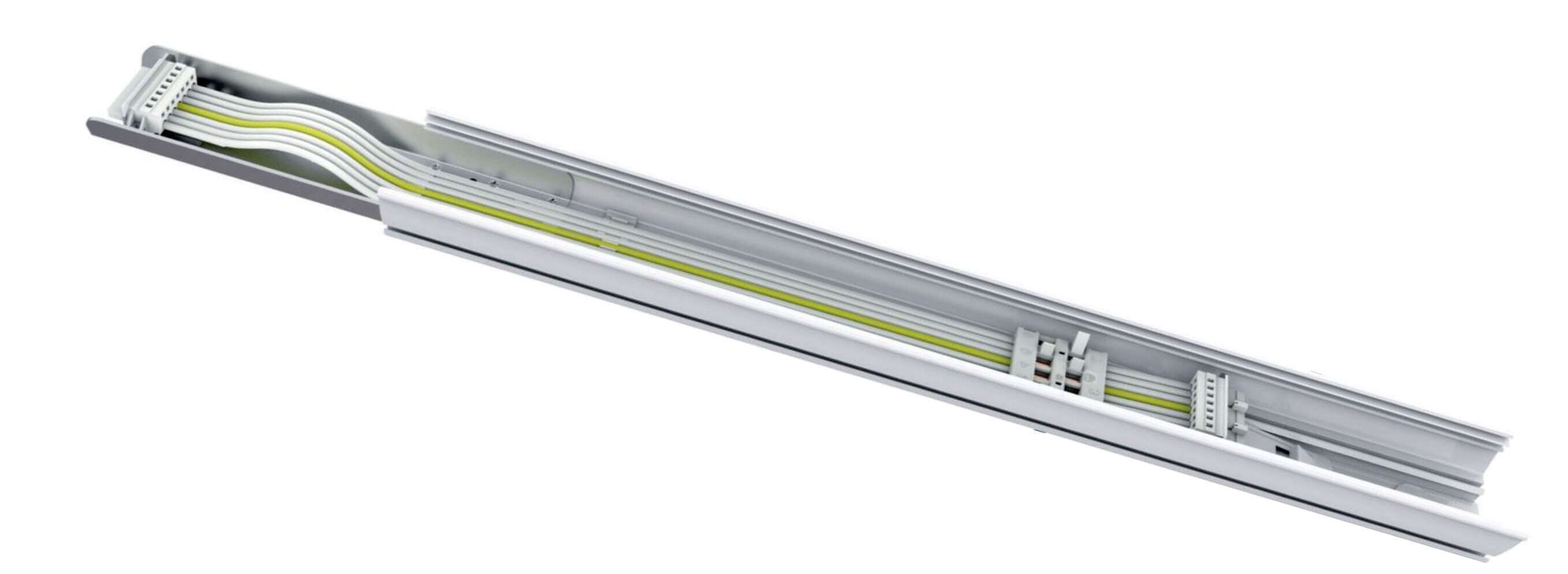

-The track is the bracket to fix the lamp body
-The circuit preset in the track powers the lamp body
-Splicing between tracks to form a system
-The rails are pre-wired within the factory and are available in three standard sizes: 3, 5, and 7
wires. The 5th line is the basic power supply line, and the other line outside the 5th line is the
function line, dimming and emergency functions.

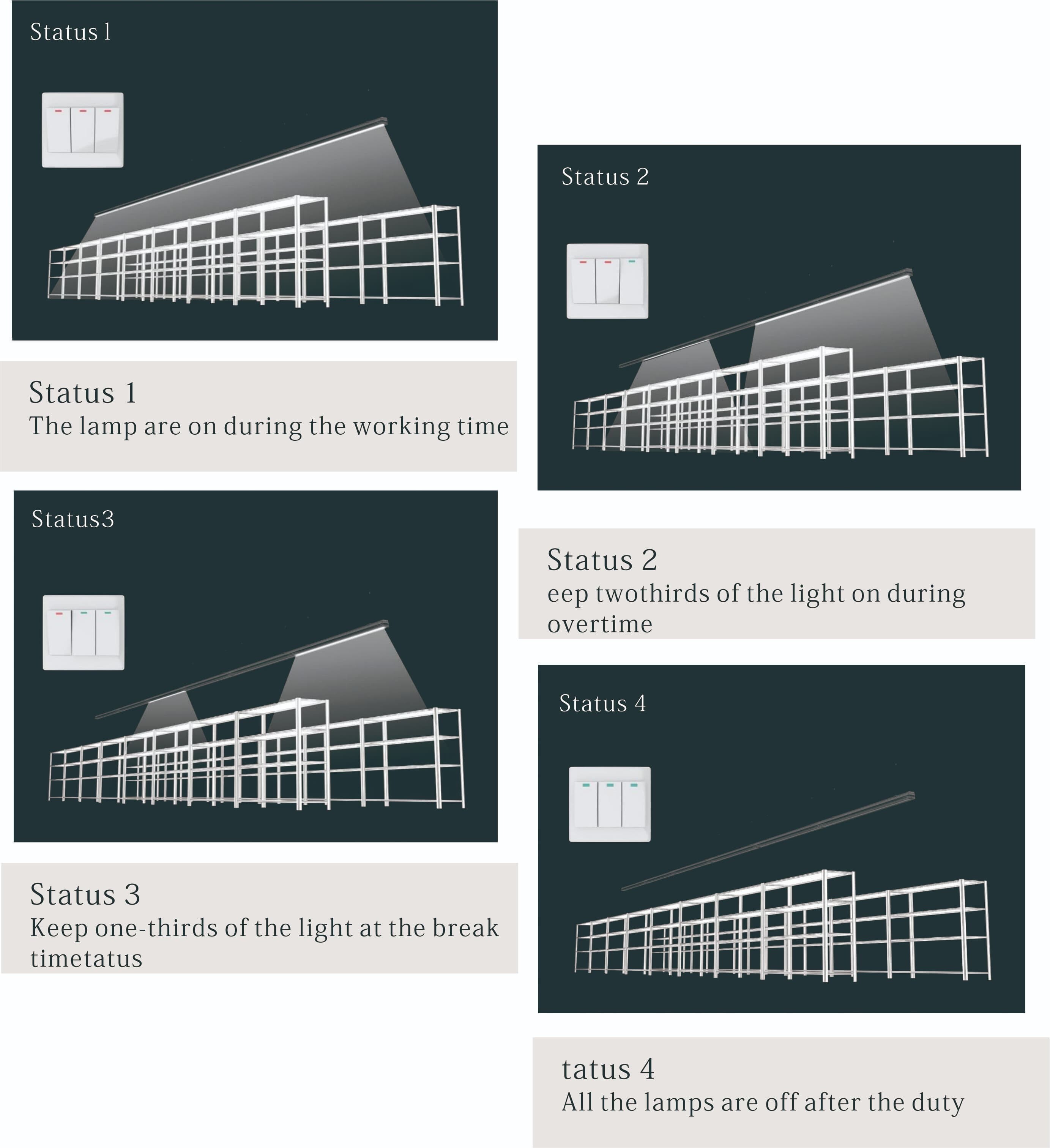

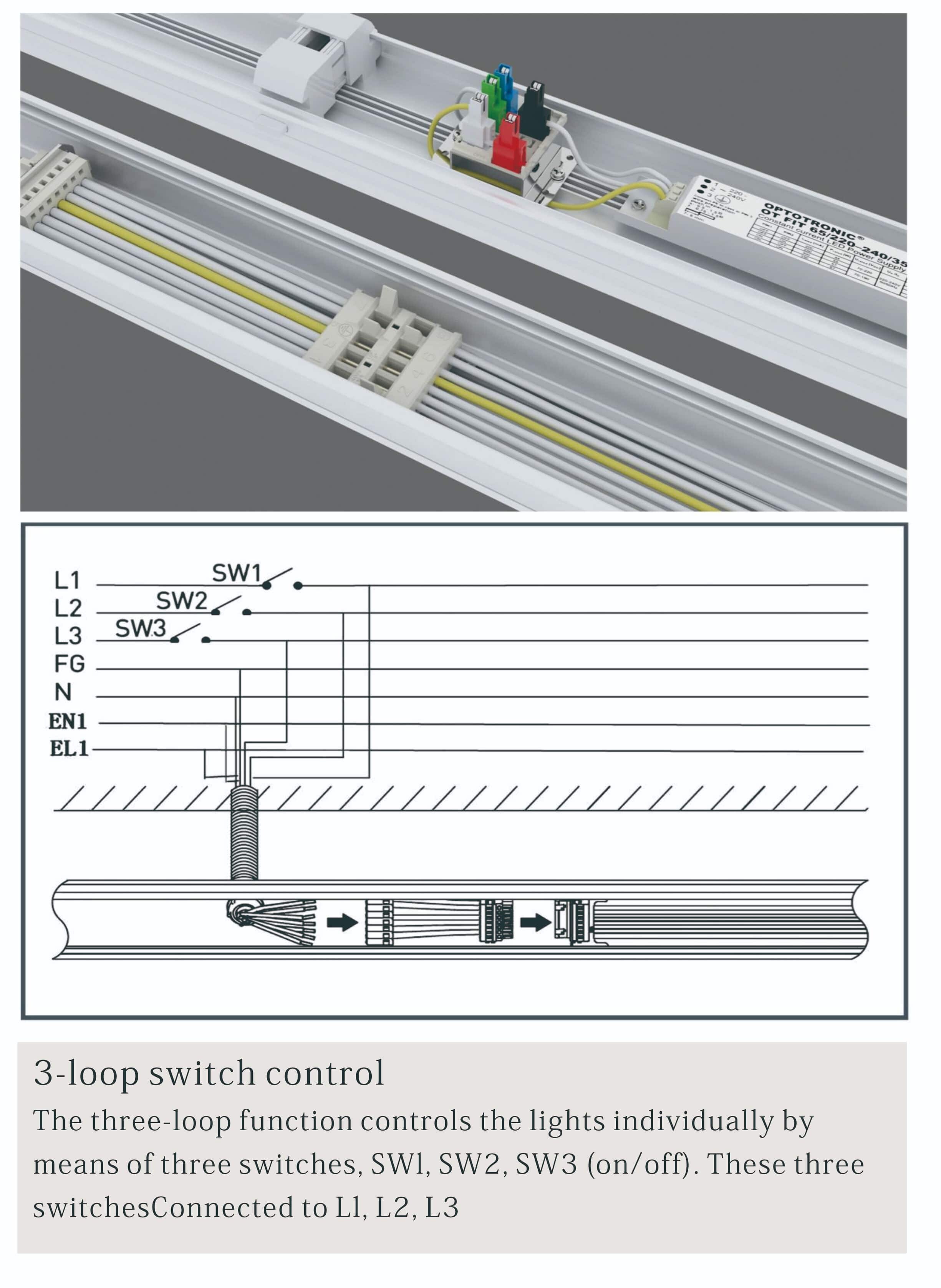

-There are 3 fire wires in 5 wires, and a common zero line and ground wire; toggle the phaseselection terminal in the track to connect the lamp body to different electrical circuits. ThreeFireWire external switches can easily realize the group management of different lamps in thesystem.

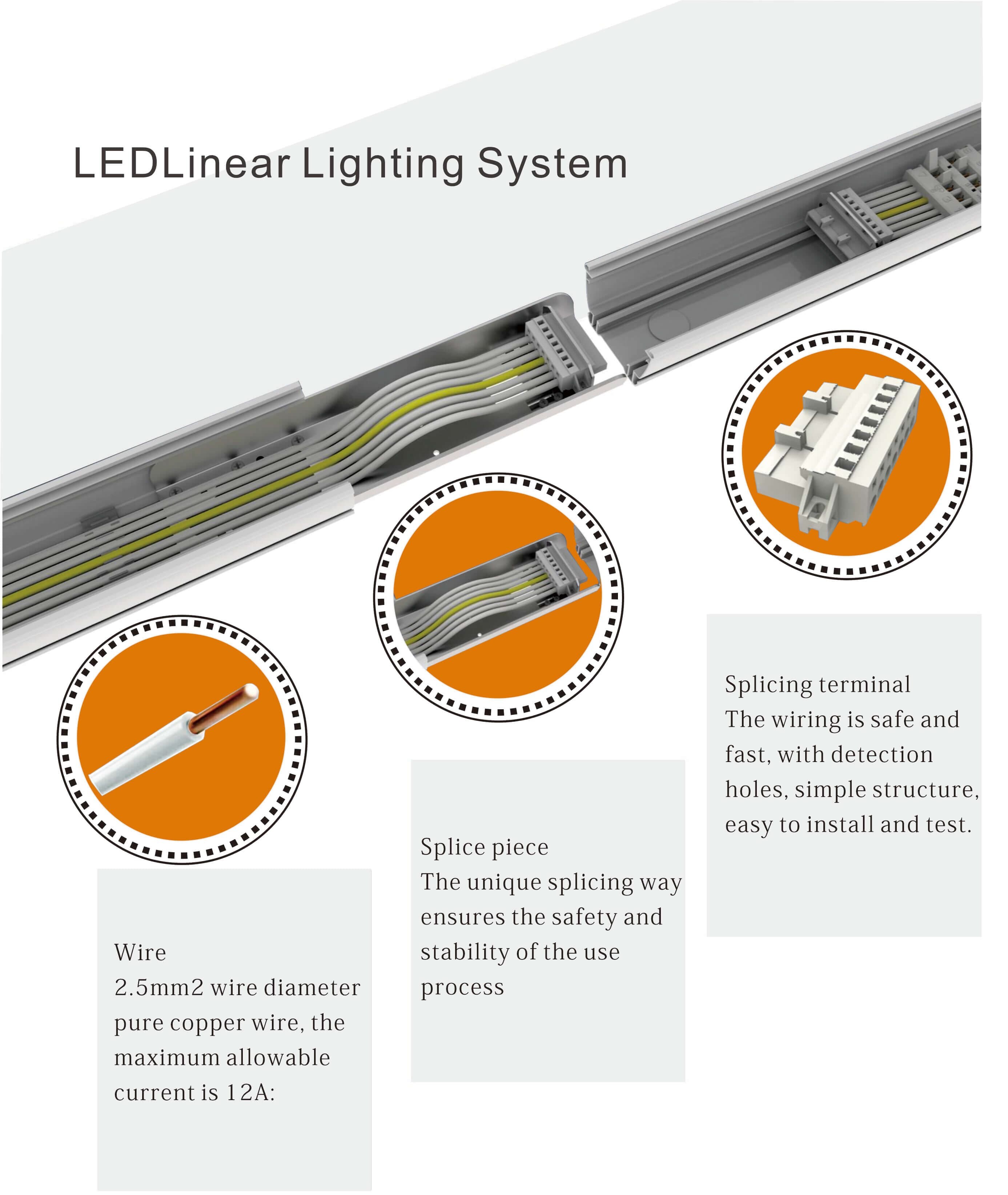

-A 2.5 square wire cable with a maximum current of 12A, One wire allows the installation of 44
60W lamps.
-The track length is available in three sizes: 600mm/1200mm/1500mm, which corresponds to alamp body of the same length.
